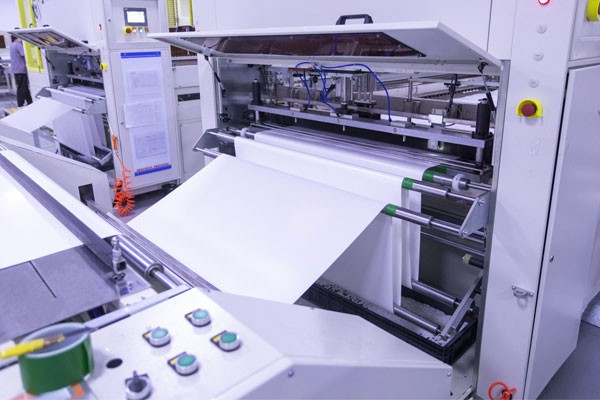

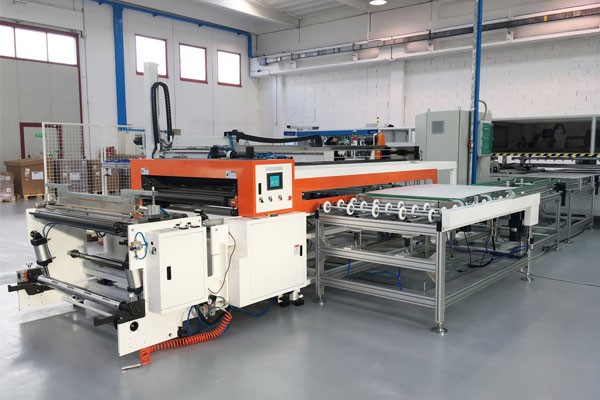

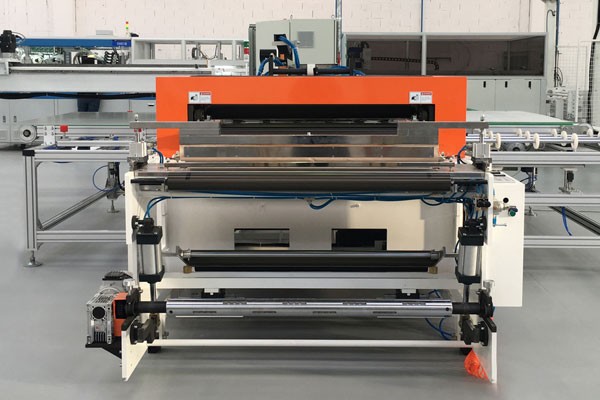

1st EVA Cutting Laying Machine|Radiant Pv Solar

1st EVA Cutting Laying Machine|Radiant Pv Solar

1.Cutting size:cutting size:50-2500mm;suitable for 156.75-210mm silicone sheet;

2.Cutting width:1400mm;

3.Max. Roll diameter:roll diameter:400-850mm EVA total length: 800m;

4.Cutting method:up and down blade, like the scissors;

5.Cutting knife:SH-9 high speed steel;

6.Roll run direction:both for Positive and negative rotate;

7.Working life for blade:500-1000M times cutting;

8.Way of material feeding:EVA: stable tension control to feed;

9.Way of laying:EVA: the system adopts the auto outlet way, the machine hand auto pack the material after cutting. The Synchronous Control Technology is used to isolate the plate and battery and flat them in reverse direction. After laying, there is no fold on the surface of EVA;

10.Way of connection:EVA: continuous processing, by hot melt connection;
